LV429450 Technical Guide: Motor Mechanism Specifications and Selection

A matching part number does not guarantee your circuit breaker will operate safely in an automated panel. When procuring components such as the lv429450, engineers and technical teams frequently discover that cross-referencing discrepancies create costly commissioning delays across switchgear installations.

You likely recognise the frustration of untangling conflicting connection diagrams, resolving mechanical compatibility across moulded-case circuit breaker frames, or guarding against unverified stock entering commercial supply chains. Reliable switchgear automation depends on precise electrical matching and verified hardware rather than catalogue assumptions.

This technical guide details the operational specifications, terminal layouts, and installation parameters for the lv429450 auxiliary contact alongside compatible ComPact NSX100 to NSX250 motor mechanism assemblies. You will learn how to verify mechanical compatibility, wire remote indication loops safely, and uphold stringent procurement standards across all commercial operations.

The following sections systematically examine technical ratings, control circuit connections, and practical diagnostics to ensure your distribution systems perform without disruption.

What Is the LV429450 Motor Mechanism and Its Primary Specifications?

Automated electrical distribution requires dependable hardware at the switchboard faceplate. Across modern industrial facilities, front-mounted motor mechanisms interface directly with moulded-case circuit breakers to facilitate remote reclosing and rapid electrical isolation. Commercial procurement schedules frequently cross-reference the lv429450 alongside these operational assemblies, linking external telemetry signals to physical toggle movements. Understanding how these assemblies coordinate with foundational circuit breaker operating mechanisms allows electrical contractors and plant managers to configure automated power networks that withstand demanding operational conditions.

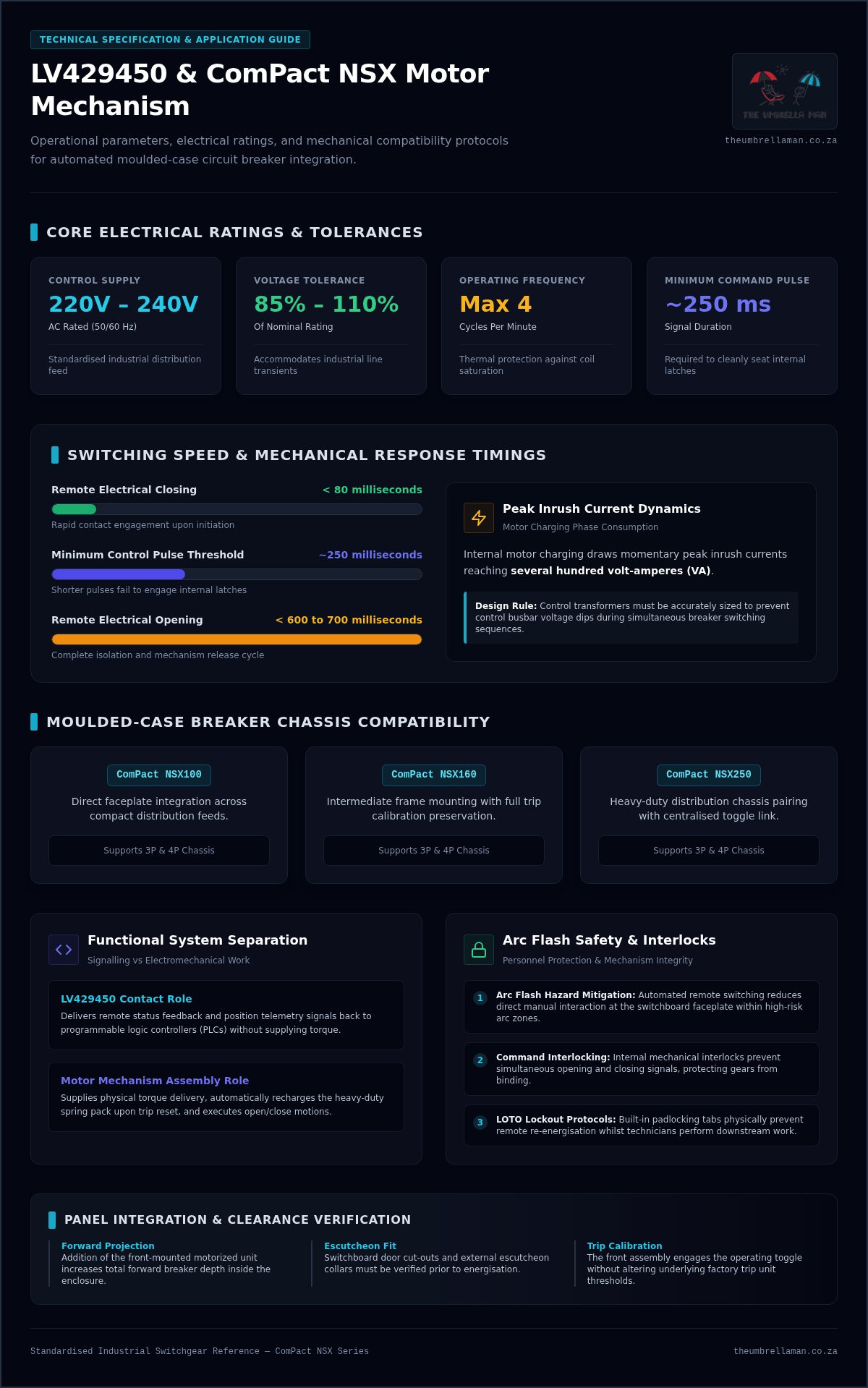

Core Electrical and Mechanical Parameters

The standard electrical configuration operates on a 220V to 240V AC control supply rated for 50/60 Hz distribution systems. Voltage tolerances typically span 85% to 110% of nominal rating, accommodating transient fluctuations within heavy industrial environments. The internal motor charges a spring assembly to deliver instantaneous mechanical force across several distinct phases:

• Opening and closing speeds: Remote electrical opening executes in under 600 to 700 milliseconds, whilst closing commands complete in less than 80 milliseconds after contact initiation.
• Cycle frequency: The mechanism supports an operating frequency capped at four cycles per minute, preventing thermal saturation within motor coils.
• Charging consumption: Motor charging draws brief peak inrush currents reaching several hundred volt-amperes, requiring correctly sized control transformers to prevent busbar voltage dips during simultaneous switching.

Breaker Frame Compatibility Across Industrial Installations

Mechanical integration depends on exact physical compatibility across circuit breaker chassis. Modules aligned with the lv429450 specification mount directly onto the front faceplate of ComPact NSX100, NSX160, and NSX250 frames:

• Pole configurations: The housing bolts securely across both three-pole (3P) and four-pole (4P) breaker variants, engaging the central operating toggle without altering internal trip unit calibration.
• Enclosure depth clearances: Adding the motorized front assembly increases overall forward projection, necessitating thorough checks of switchboard door clearances, escutcheon cut-outs, and external handle linkages.
• Physical lockout integrity: Built-in padlocking tabs preserve manual lock-out tag-out (LOTO) protocols, preventing remote re-energisation whilst personnel conduct downstream servicing.

Technical Breakdown: Electrical Operation, Remote Switching, and Integration

Executing dependable remote switching requires close synchronisation between electrical signals and stored mechanical energy. While components like the lv429450 auxiliary contact relay position telemetry back to programmable logic controllers (PLCs), the companion motor operator handles the physical torque delivery. Aligning control philosophy with established industrial benchmarks, such as OSHA standards for remote electrical controls, guarantees that automatic commands preserve personnel safety without sacrificing response speed.

Motorised Energy Storage and Operating Principles

The internal geared motor charges a heavy-duty spring pack immediately following any breaker opening or trip reset. Mechanical interlocks prevent simultaneous opening and closing commands, eliminating internal gear conflict. Electrical control commands require a minimum pulse duration of roughly 250 milliseconds; pulses shorter than this threshold fail to seat internal latches cleanly. Because repeated rapid switching causes thermal accumulation within motor enclosures, circuits must adhere to duty-cycle limits to shield motor windings from overheating.

Terminal Connections and Control Wiring Configurations

Control terminals provide dedicated interfaces for remote pushbuttons, key-operated switches, and automation controllers. Technicians should observe precise termination standards across the panel face:

• Conductor sizing: Run 1.5 mm² to 2.5 mm² stranded copper conductors to prevent adverse voltage drops across extended control runs.
• Circuit protection: Place fast-acting control fuses, typically rated between 2 A and 4 A, adjacent to the control source tap to shield internal motor windings against fault currents.
• Signal segregation: Route low-voltage signalling cables, including lv429450 auxiliary loops, through dedicated wiring trunks separated from high-current power lines to avoid inductive coupling.

Manual Override and Padlocking Safety Measures

Industrial facilities occasionally require direct intervention during commissioning or scheduled panel servicing. An integrated front lever allows technicians to manually charge the spring mechanism and toggle breaker contacts without control power. Built-in sliding shutters accept safety padlocks in the open position, establishing an absolute physical lockout that prevents remote energisation whilst staff work downstream. Clear mechanical position flags remain visible through enclosure inspection windows to confirm true contact state at a glance. Managing high-stakes facility infrastructure demands this level of procedural discipline, a standard shared when sourcing commercial equipment through trusted commercial supply partners committed to rigorous operational integrity.

LV429450 vs Manual Circuit Breakers: Practical Selection Criteria

Specifying switchboard architecture involves balancing upfront hardware expenditure against long-term operational resilience. While standard manual toggles offer baseline isolation, integrating motorised actuation alongside signaling devices like the lv429450 transforms passive circuit protection into an active, managed asset. Consulting the Official LV429450/29450 Technical Data highlights how low-level contact feedback coordinates with primary gear to inform critical retrofit decisions.

Operational Reliability and Uptime Comparison

Comparing manual circuit breakers with motorised equivalents reveals distinct differences across key operational metrics:

• Response latency: Manual breaker resets require on-site technical personnel to locate the tripped board, inspect the fault, and cycle the handle physically, often taking 20 to 45 minutes. Motorised units complete reclosing commands within milliseconds once safety interlocks clear.
• Personnel safety: Direct manual switching places operators directly within the arc flash hazard boundary. Motorised front mechanisms enable remote triggering from dedicated control rooms, eliminating personnel exposure during high-risk energisation events.
• Actuation consistency: Manual toggling exposes breaker linkages to variable human force, which accelerates uneven wear. Motorised spring packs apply uniform, calibrated torque during every cycle, preserving internal contact alignment over years of service.

Assessing Facility Readiness for Automated Motor Mechanisms

Not every distribution board requires complete automation. Plant managers should assess physical and electrical preconditions before converting manual breakers to motorised configurations:

• Auxiliary power availability: Motor mechanisms require stable, uninterrupted control voltages. Facilities without dedicated uninterruptible power supply (UPS) backups or clean auxiliary feeds risk being unable to reclose breakers during total mains failure.
• Enclosure thermal margins: High-frequency switching generates heat. Enclosures must feature adequate natural convection or forced ventilation to dissipate thermal loads generated by continuous motor charging cycles.
• Critical uptime mandates: Applications involving continuous manufacturing, municipal pumping, or hospital sub-distribution justify automation immediately. In contrast, non-critical sub-circuits operating with static seasonal loads rarely recoup the investment required for remote motorisation.

System specifiers must evaluate these practical realities systematically. Balancing remote monitoring through the lv429450 with mechanical automation ensures facilities gain reliable protection without incurring superfluous engineering overheads.

Step-by-Step Installation, Commissioning, and Testing of the LV429450

Commissioning automated switchgear demands methodical adherence to safety standards and mechanical precision. Graphic installation sheets often omit crucial field realities, leading to misaligned toggles or damaged terminal strips. Whether installing an operational motor operator or snapping in an auxiliary contact like the lv429450, completing installation in disciplined phases eliminates costly commissioning errors.

Pre-Installation Verification and Frame Preparation

Begin by de-energising the switchboard completely. Prove dead using an intrinsically safe, calibrated voltage tester across all incoming and outgoing stabs, then attach temporary protective earthing leads. Inspect the circuit breaker front moulding for dust, grease, or mechanical obstruction. Cycle the manual toggle by hand through several open, closed, and tripped states to ensure free movement without binding. Finally, cross-check the nameplate on the mechanism to ensure the control voltage matches panel schematics.

Mechanical Coupling and Control Terminal Wiring

Carefully position the mechanism housing over the breaker faceplate, aligning the internal driving arm directly over the breaker toggle:

• Seating the housing: Press the module flush against the breaker casing until internal latches click into place. Never force the unit into position.
• Fastening hardware: Tighten retaining screws diagonally in increments, using a calibrated torque screwdriver set to 1.2 to 1.5 Nm to prevent cracking the thermoset enclosure.
• Terminal termination: Insert control conductors into their dedicated push-in spring clamps, verifying that wire insulation does not catch under clamping plates.

Commissioning Protocols and Functional Switchboard Testing

Test mechanical functions manually prior to introducing auxiliary electricity. Pump the manual charging handle until the stored-energy indicator reads “charged”, then press the mechanical close and open pushbuttons to confirm positive latching. Once mechanical freedom is confirmed, energise only the auxiliary control loop whilst keeping main primary busbars dead. Observe the automatic motor charging sequence. The motor should wind the spring mechanism smoothly and cut out via internal limit switches within three seconds.

Conduct repeated electrical operations across remote interface contacts, verifying that status outputs, including feedback from the lv429450, update PLC status registers correctly. Complete your inspection by logging operating currents, response latencies, and breaker serial numbers within your site maintenance register. Maintaining exceptional facility infrastructure requires dependable hardware procurement across every operational sector, so ensure you partner with verified organisations by exploring commercial procurement partnerships built upon proven quality control systems.

Procurement Standards, Quality Assurance, and Component Longevity

High demand for commercial electrical gear has led to an influx of unverified stock across industrial supply channels. Installing uncertified components into main distribution switchboards introduces significant operational liability, ranging from nuisance tripping to complete insulation failure. Whether sourcing secondary accessories like the lv429450 auxiliary contact, complete motorized drive assemblies, or heavy-duty infrastructure from established OEMs like Africa Switchgear & Transformers, procurement teams must enforce uncompromising verification standards to safeguard plant operations.

Mitigating Counterfeit Risks in Commercial Hardware Sourcing

Physical inspection remains the first line of defence against substandard grey-market hardware. Technicians and procurement officers should evaluate every incoming delivery against strict manufacturing benchmarks:

• Moulding and marking quality: Genuine components display crisp, laser-etched product legends, verified standards markings such as IEC 60947-5-1:2024, and clean plastic seams free from rough flashings.
• Packaging and security seals: Authentic items arrive in branded, tamper-evident boxes featuring intact holographic labels and verifiable barcoding.
• Batch traceability: Insist upon certificates of conformity and traceable batch codes that match manufacturer production databases prior to signing off warehouse intake.

Lifecycle Preventative Maintenance Schedules

Routine maintenance schedules preserve switchgear longevity and avoid unexpected outages. Visual audits should occur every six to twelve months, checking for particulate accumulation, discolouration caused by localized heating, and terminal tightness. Operators should monitor cycle counters against the breaker frame’s mechanical life ratings. Sluggish spring charging times or excessive gear noise during remote test commands usually indicate dust contamination or motor brush wear, requiring prompt component servicing before electrical failure occurs.

Reliable Nationwide Sourcing for Professional Facilities

Managing extensive commercial infrastructure demands strategic supply alliances capable of delivering dependable performance across nationwide distribution footprints. Securing authentic switchgear components relies on the exact same institutional discipline seen in broader commercial procurement. Established national partners build trust through verified quality control frameworks, comprehensive documentation, and dependable logistics channels that support enterprise operations seamlessly. Demanding strict provenance for auxiliary hardware, such as the lv429450, guarantees that remote control architecture operates reliably across years of demanding industrial service.

Standardising Procurement and Installation for Reliable Industrial Control

Achieving dependable switchgear automation requires technical discipline at every stage. Verifying mechanical compatibility across breaker frames, ensuring correct control voltages, and integrating verified signalling components like the lv429450 prevent disruptive downtime. Following structured commissioning sequences and enforcing strict de-energisation protocols ultimately keeps maintenance teams safe whilst ensuring plant systems remain resilient.

Industrial reliability extends beyond the panel faceplate to encompass every operational asset across your site. Sourcing durable, thoroughly vetted hardware demands partners who treat quality control as an absolute priority. As an established commercial supplier serving organisations nationwide since 2009, The Umbrella Man brings an unwavering commitment to durable hardware standards and transparent supply agreements. Aligning with proven supply networks safeguards enterprise facilities against premature component failure and logistical uncertainty. Connect with The Umbrella Man for dependable commercial solutions nationwide and establish resilient infrastructure built for long-term performance.

Frequently Asked Questions

What is the primary function of the LV429450 motor mechanism?

The primary function associated with the lv429450 designation in automated switchgear is remote breaker monitoring and motor mechanism integration. While motor modules provide physical opening and closing of breaker contacts, auxiliary contact switches signal electrical position status back to supervisory controllers. Together, they allow facility operators to automate power isolation, execute reclosing sequences from remote control desks, and eliminate manual panel toggling during routine operations.

Which circuit breaker frames are mechanically compatible with the LV429450?

Mechanically compatible switchgear includes standard ComPact NSX100, NSX160, and NSX250 moulded-case circuit breaker frames. The accessory interface accommodates both three-pole and four-pole chassis designs without requiring modifications to the internal trip unit. Specifiers should confirm breaker frame dimensions beforehand, ensuring enclosure depth accommodates the front-mounted mechanism along with necessary external door clearances and escutcheon collar trims.

Can the LV429450 be operated manually if auxiliary control power fails?

Manual operation remains fully accessible even during complete auxiliary power failure. The mechanism features a front-mounted manual charging handle alongside physical pushbuttons. Operators can pump the lever by hand to compress the internal operating spring and depress the mechanical toggles to open or close breaker contacts safely. This ensures technicians maintain absolute operational control over distribution circuits during emergency blackouts.

What voltage supply is required to power the LV429450 module?

Standard installations incorporating the lv429450 auxiliary contact loop and companion motor modules require a control supply of 220V to 240V AC at 50/60 Hz. The drive operates reliably within a permissible voltage fluctuation tolerance between 85% and 110% of nominal rating. Plant engineers should provide dedicated fused control lines or clean auxiliary feeds, preventing voltage sags from disrupting charging cycles during facility disruptions.

How long does the motor take to charge the internal operating spring?

The internal electric motor charges the stored-energy spring mechanism in under three seconds following a breaker trip or opening sequence. Once charged, the motor disconnects automatically via internal limit switches. Stored mechanical energy then permits instantaneous closing in under 80 milliseconds upon receiving an electrical command. Operational guidelines restrict continuous cycling to four operations per minute to prevent motor coil overheating.

Is it possible to padlock the LV429450 in the open position for maintenance?

Integral safety padlocking is standard on the front faceplate. Sliding shutters accommodate up to three safety padlocks when the circuit breaker is isolated in the open position. Locking the shutter prevents both local pushbutton depression and remote motorized closing commands. This mechanical lockout enforces strict compliance with national occupational safety standards during downstream plant maintenance.

What happens if an electrical close signal is maintained while the breaker trips?

An internal anti-pumping feature prevents dangerous cycling if a close command remains active during a fault. The breaker trips completely free of the mechanism, opening contacts instantly despite ongoing electrical signals. The motor operator won’t attempt a reclosing sequence until the active close command is interrupted, reset, and re-initiated, protecting switchgear against catastrophic damage during sustained fault conditions.
